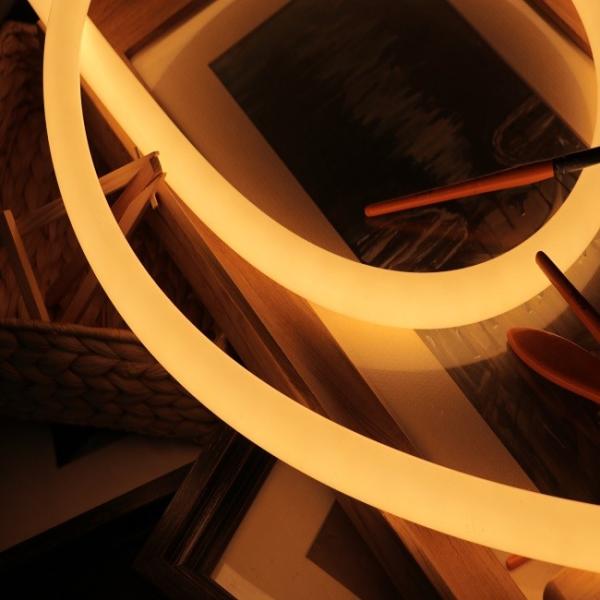

24V 360°luminous 3D lighting Warm white + Cold white
Quick Detail:
· Voltage: DC24V
· Neon Diameter: 25mm
· Beam Angle: 360°
· Cutting Interval: 50mm
· Max Wattage: 10W/m
· CRI: Ra90
· CCT: 2700K+5000K
· Max Run Lenghth: 5m
· IP Rating: IP65
· Endcap Option: Injected
· CE, RoHS, TUV, UL compliant
· 5 Year Warranty
Description:
- 360°luminous uniformity without any shadow.
- IP65 protected, UV resistant, chemical resistant and flame
retardant.
- Max.run Length 5M.
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Model | LEDLINE RONDO 2700K+5000K |
| SMD Type | Lumileds 2835 |
| LEDs/m | 240LEDs/m |
| LED Power | 10W/m |
| LED Color | 2700K+5000K |
| Input Voltage | DC24V |
| Ra | >93 |
| Neon Diameter | 25mm |
| Unit cut | 50mm |
| IP Grade | IP65 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
| Efficiency(LM/W) | 517LM/M |
Download datasheet:
LEDLINE Rondo.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
1. The product is not available for cutting.
2. When ambient temperature reaches 55℃ , the power is suggested to
be 5W/M.
3. Max. run length refers to single side feed in serial connection.
4. The given data are typical values due to the tolerances of the
production process and the electrical components, values for light
output and electrical power can vary up to 10%.
5. The given color temperature is the temperature of finished
product.
6. Max production length 5 meters per reel, and the standard
packaging is 5meters per reel.
7. Standard cable length is 30cm, if you need cable longer than
30cm, please mention us the required cable length.
Applications:
l Solutions for retail shops, any indoor projects
l Ideal for amazing different shape lighting application
l Suitable for Aesthetic art lighting application
Signage and illuminated advertising lighting
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product
itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse,
improper handling, act of nature, negligence, normal wear,
accidental damage, modifications or repairs made by the purchaser
or incorrect voltage conditions.
