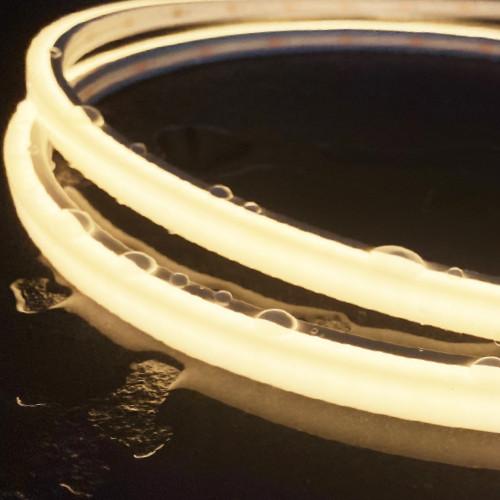

ERP 2835 LED strip WHT 2700K CRI90 DC 24V
Description:
Brand Chip & LED
Produced with golden wire and copper circuit board, good quality
assurance and long lifespan
Double Layers PCB
All strips is double-sided pcb, 2ouns or 3ouns, low voltage drop
and good heat dissipation
3M Tape on the Back
3M Adhesive tape with strong adhesion, easy and convenient to use
on any surface
Cuttable Length
DIY cutting, 24v you can cut every 8leds
Quick Detail:
· ERP COVEFLEX 2835 70, DC24V.
· 70LEDs/m
· CRI80 and CRI90 optional.
· SDCM 3, One Bin Only
· Maximum run length 5M
· Unit cut is 100mm
· IP20
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Specifications:
| Tech Date | |
| Model | ERP COVEFLEX 2835 70 WHT 2700K |
| LED Type | SMD 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP20 |
| Warranty | 5 Years |
| Max. Run Length | 5M |
| CRI | Ra90 |
| LED Color | White |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 2700K |
| Chromaticity Coordinates (x and y) | x=0.463 / y=0.42 |
| Power(W/M) | 4.8W/M, |
| LM/0.5M | 197lm |
| Efficiency(LM/W) | 82lm/w |
| Energy Efficiency Class | G |
Notices:
1. The LED strip bending radius is 50mm. Please do not fold with
sharp angle or twist the LED strip.
2. It will be likely to destroy the LED strip if exceed the maximum
rated operating voltage.
3. Please do not connect the LED strip beyond the maximum
connecting length.
Applications:
auditorium walkway
canopy
stairway accent lighting
amusment park
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product
itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse,
improper handling, act of nature, negligence, normal wear,
accidental damage, modifications or repairs made by the purchaser
or incorrect voltage conditions.
