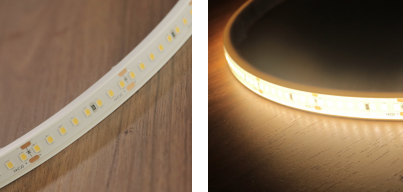

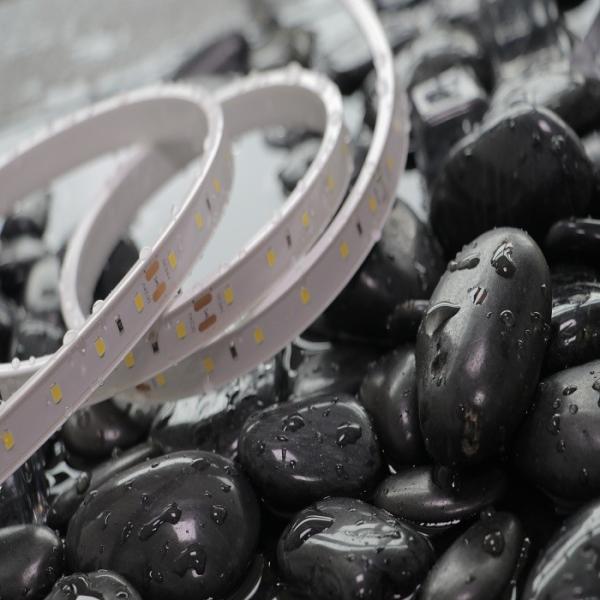

Ribbon light 2835 LED 4000K Ra90 160led/m high lumen IP68 led strip
Description:
-Condense LED layout achieving 130LM/W
-High waterproof rate-IP65, available for outdoor and underwater
applications.
Quick Detail:
· Size 10mm Width PCB
· SMD2835 Strip
· 160LEDs/m
· Maximum run length 5M@19W/m
· IP68 rating
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
· Unit cut: 50mm
· High lumen efficiency with 130LM/W @Ra90
Specifications:
| Tech Date | |
| Model | MERA-40 |
| LED Type | SMD2835 |
| LED Quantity | 160leds/m |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP65 |
| Warranty | 5 Years |
| Max. Run Length | 5M@14.4W/m |
| CRI | Ra90 |
| Unit Cut | 50mm |
| LED Color | Neutral white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 4000K |
| Power(W/M) | 14.4W/m |
| Lumen | 2218lm/m |
Download datasheet: COVEFLEX
MERA-40.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
If the led strip needs to be torn up,please make sure that the self
adhensive tape is torn with the led strip,otherwise the led strip
will be damaged
When install the led strip,please note the installation
technique.The led strip can be bent, but not distorted.
LED strips are low votage products,you must use the power
supply(transformer).Please don,t connect the led strip directly to
the AC 110v or AC 220v,otherwise it will burn out the LED strips.
Clean up the installation surface,it will ensure the reliability of
the adhesive,The electrical connection process must be operated by
a professional person.
Applications:
-It is ideal for any indoor or outdoor wet applications including
underwater.
-Easy mounting on many smooth surfaces with self-adhesive tape at
the back and clips.
-Also good idea to install it with Aluminum profile plus opal cover
to reach dot free.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product
itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse,
improper handling, act of nature, negligence, normal wear,
accidental damage, modifications or repairs made by the purchaser
or incorrect voltage conditions.
