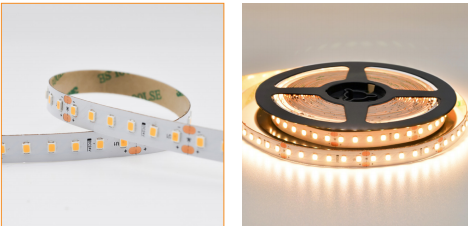

LED Strip IP20 SMD 2835 Wide CCT Range 24VDC SDCM 3 Ra90 Indoor
Quick Detail:
· Reliable LED 3 Step
· One Bin Only ensure perfect color consistency
· 120º beam projection
· IP20 for all indoor application
· CE, RoHS, Reach, UL compliant
· 5 years warranty
· Easy mounting on many smooth surfaces thanks to self-adhesive
tape at the back
· Simple mounting and connection
Specifications:
| Tech Date | |
| ModelCOVEFLEX VENUS WHT 6500K | COVEFLEX VENUS WHT 6500K |
| LED Type | Sanan 2835 |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| LEDs.m | 120LEDsm |
| Width | 10mm |
| Unit Cut | 50mm |
| IP Grade | IP20 |
| Warranty | 5 Years |
| CRI | Ra80 |
| LED Color | Cold White |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Power(W/M) | 24W/M |
Download datasheet: COVEFLEX
VENUS Datasheet.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
-The LED strip bending radius is 50mm. Please do not fold with
sharp angle or twist the LED strip.
-It will be likely to destroy the LED strip if exceed the maximum
rated operating voltage.
Please do not connect the LED strip beyond the maximum connecting
length.
-LED strips are equipped with a self-adhesive tape for attaching
the LED strip to suitable materials, such as aluminum profiles,
which must be clean and free of oil or silicone coatings, as well
as other dirt/dust particles. The adhesive tape is intended for
single use and if removed may damage the material to which it is
stuck and the LED module itself, which must
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q2: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q3: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product
itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse,
improper handling, act of nature, negligence, normal wear,
accidental damage, modifications or repairs made by the purchaser
or incorrect voltage conditions.
