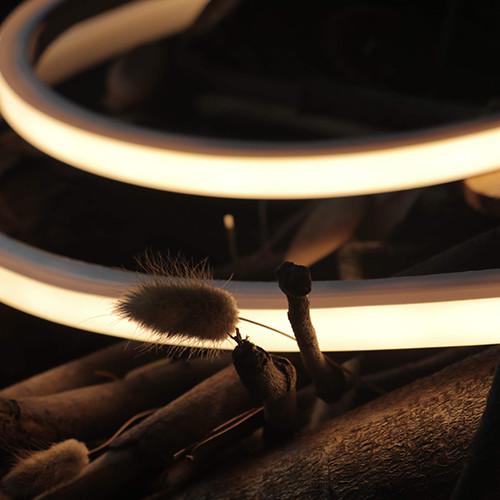

24VDC warm white 2700K LED light Neon strips with 5 year warranty
Quick Detail:
· Voltage: DC24V
· Neon Size: 16mm*15mm
· Bending Direction: Top bending (verticall bending)
· Cutting Interval: 41.67mm
· Max Wattage: 15W/m
· CRI: Ra93
· CCT:2700K
· Max Run Length: 14m
· IP Rating: IP68
· Endcap Option: Injection
· CE, RoHS, TUV, UL compliant
· 5 Year Warranty
Description:
- LEDLINE FLEX TOP WHT, DC24V.
- 15mm / 0.63" x 0.59" (W x H), which is vertical bending with
radius of 150mm / 5.9".
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Model | TOP 1615 WHT 2700K |
| SMD Type | Lumileds 2835 |
| LEDs/m | 120LEDs/m |
| LED Power | 15W/m |
| LED Color | 2700K |
| Input Voltage | DC24V |
| Ra | >93 |
| Neon Dimension | 16mm*15mm |
| Unit cut | 50mm |
| IP Grade | IP68 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
| Efficiency(LM/W) | 818LM/M |
Notices:
- When ambient temperature reaches 50℃,the power is suggested to be
5W/M.
- The product delivery length is 5M/reel maximum. Max. run length
refers to single side feed in serial connection.
- The given data are typical values due to the tolerances of the
production process and the electrical components, values for light
output and electrical power can vary up to 10%.
- The given color temperature is the strip (after coating) color
temperature.
- The product can be cut ONCE only and finish with end cap & glue,
then IP rating drops to IP67.
- Please make the cable connection out of water for underwater
installation. It is 3 years warranty for underwater applications.
- Standard cable length is 30cm, if you need cable longer than
30cm, please use our extension connector with 1m or 5m cable.
- It is IK08 rated
Applications:
1. IP68 protection with full Polyurethane encapsulation. With PC
profile, perfect for underwater applications like swimming pools.
2. Ideal for resort, seaside park and luxurious yachts decoration.
3. Professional solution for architectural & facade lighting
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product
itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse,
improper handling, act of nature, negligence, normal wear,
accidental damage, modifications or repairs made by the purchaser
or incorrect voltage conditions.
