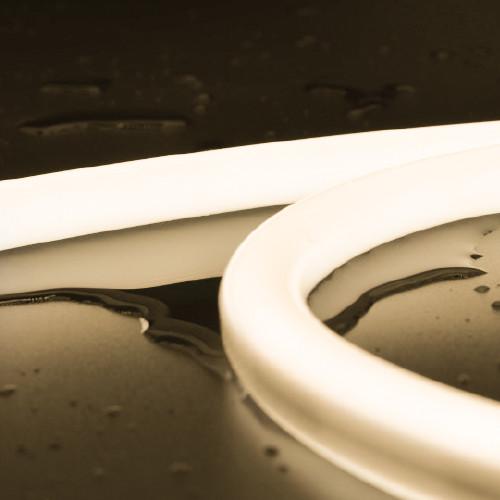

24V Neon strip WHT 2700K UV resistant top bending IP67
Description:
- LEDLINE SIMBA WHT, DC24V Cross section size 16mm x 15.5mm/ 0.63"
x 0.61" (W x H), which is vertical bending with radius of 100mm /
3.94".
- 2-Step MacAdam bin and dot free lighting guarantee the most
excellent performance over the rated lifetime.
- IP67 protected, UV resistant, chemical resistantm for indoor &
outdoor solutions. Very easy to cut & reconnect on site.
Quick Detail:
· LEDLINE SIMBA WHT, DC24V.
· Size 16mm x 15.5mm/ 0.63" x 0.61" (W x H),
· UV-resistance(no yellowish)
· Lumileds LED
· 120º beam projection
· Maximum run length 13M
· Max production Length: 30m/reel
· IP67 protected
· Cable entry directions: Front/Side/Bottom
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Specifications:
| Tech Date | |
| Model | LEDLINE SIMBA WHT 2700 |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 3 Years |
| Max. Run Length | 13M |
| CRI | Ra93 |
| LED Color | White |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 2700K |
| Chromaticity Coordinates (x and y) | x=0.463 / y=0.42 |
| Power(W/M) | 10W/M |
| LM/M | 760lm |
| Efficiency(LM/W) | 76lm/w |
Notices:
1. Max production length 30meters per reel, and the standard
packaging is 10meters per reel.
2. Standard cable length is 30cm, if you need cable longer than
30cm, please mention us the required cable length.
3. It is no IK-Rated, please don't walk on it without protection
Applications:
LEDLINE SIMBA W27 is suitable for both indoor and outdoor
applications such as facade lighting, contour lighting, landscape
lighting, retail shops, gallery, show-booth and exhibition room.
Ideal for architectural lighting, coves, object integration.Desired
light effect in bar counter, restaurant, hotel and task lighting
applications.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product
itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse,
improper handling, act of nature, negligence, normal wear,
accidental damage, modifications or repairs made by the purchaser
or incorrect voltage conditions.
