P67 UV resistant DC24V RGBW Silicone Neon Suitable for bar, ceiling
and wall lighting etc.
Description:

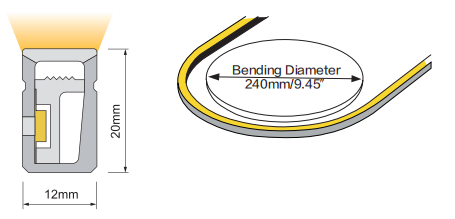

- LEDLINE ASTON 1220 RGBW, DC24V. Cross section size 12mm x 20mm/
0.47" x 0.79" (W x H), which is horizontal bending with radius of
120mm / 4.72".
- IP67 protected, UV resistant, chemical resistant and DIY
connectors for indoor & outdoor solutions. Very easy to cut
&reconnect on site.
- ONE BIN only and dot free lighting guarantee the most excellent
performance over the rated lifetime.
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Tech Date | |
| Model | LEDLINE ASTON 1220 RGBW |
Voltage | DC24V (23.5Vmin, 24.5Vmax) |
| Beam Angle | 120° |
| LED PIN Temperature | Max. 65℃ /149o F |
| Storage Temperature | -25℃ /-13o Fmin, 60℃ /140o Fmax |
| Life span | >30000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 3 Years |
| Max. Run Length | 10M |
| Power(W/m W/ft) | 15/4.6 |
| LED Color | RGBW |
DIY Endcap Max. Run length | 4.8M |
Notices:
- The max. run length of using Integrated Endcap and DIY Endcap is
different. Please refer to the above table.
- Max. run length refers to single side feed in serial connection.
- The given data are typical values due to the tolerances of the
production process and the electrical components, values for light
output and electrical power can vary up to 10%.
- The given color temperature is the temperature of finished
product.
Applications:
Suitable for bar, ceiling and wall lighting application.
Ideal for color dynamic application with excellent color rendition
and high power levels.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Are you a manufacturer?
A: Yes, we have our own factory and professional engineers to meet
your any requirements. Welcome you to visit our factory.
Q2. OEM OR ODM accepted?
A: Yes,we can do OEM & ODM,logo on the light or package both are
available.
Q3. What are your payment terms?
A: 100% Payment before production or 30% deposit+ 70% before
shippment(The latter requires a single payment of more than
$10,000)
Q4. Why use Silicone material?
A: 1. UV resistant, will not yellow in time.
2. Highly flexible, stable and durable; soft to bend, fast recovery
after bending.
3. For the installation environment, it can endure in -25℃ to 60℃
temperature.
4. Non sticky, easy-to-clean, no smell and no chemical reaction
with detergent.
5. Premium look and feel.
Q5. Is it possible to visit the factory?
A:Of course, we welcome customers to experience our production
equipment and standard production environment.
