SMD5050 RGBWW 24V 12mm width LED Strip IP20 Indoor decoration
lighting
Description:
- SMD5050 RGBWW (5 in1), adopts single LED with 5 chips. RGB+ cold
white (6000-6500k)+warm white(2200-2400k).
- Using RGB+W+WW controller can achieve any flashing effects.
- One BIN Only ensures perfect color consistency.
- Uniform color changing
- Great design freedom thanks to flexibility and cuttability of PCB

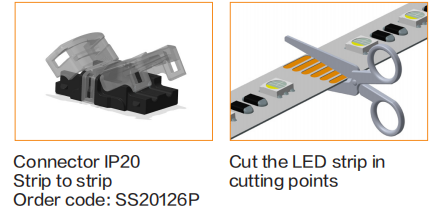

- Toolless connection with the suitable connector
Specifications:
| Tech Date | |
| Model | COVEFLEX PEFI RGBWW |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| LEDs.m | 84LEDs/m |
| Width | 12mm |

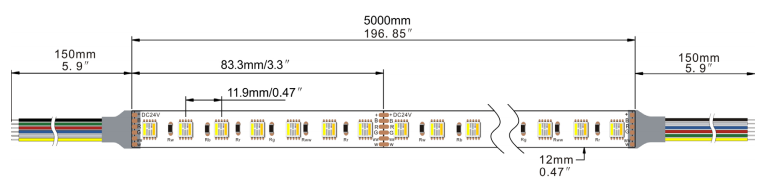

| Unit Cut | 83.3mm |
| IP Grade | IP20 |
| Warranty | 3 Years |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | RGBWW2400K+6500K |
| Power(W/M) | 19.2W/M |
Notices:
- The LED strip bending radius is 50mm. Please do not fold with
sharp angle or twist the LED strip.
- It will be likely to destroy the LED strip if exceed the maximum
rated operating voltage.
Please do not connect the LED strip beyond the maximum connecting
length.
- LED strips are equipped with a self-adhesive tape for attaching
the LED strip to suitable materials, such as aluminum profiles,
which must be clean and free of oil or silicone coatings, as well
as other dirt/dust particles. The adhesive tape is intended for
single use and if removed may damage the material to which it is
stuck and the LED module itself, which must then be scrapped.
Applications:
- Can be mounted on bar, windows, archways, canopies or corridors
for architectural lighting, also suitable for decorative lighting
in holidays, exhibitions etc.
- With changeable colors and speed automatically and periodically,
RGBWW is perfect for various applications, including film lighting,
stage lighting and commercial lighting.
