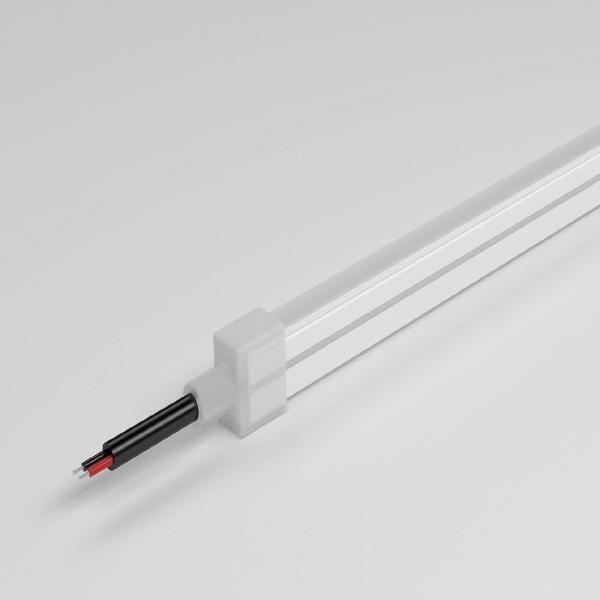

2700 Flexible Silicone Neon Strip IP44/IP67 indoor & outdoor
lighting solutions
Description:
- Side bending 6mm x 12mm / 0.24" x 0.47" (W x H) led flexible
silicone neon strip in warm white
- IP67 waterproof protection, UV resistant(no yellowish), suitable
for both indoor and outdoor applications.
- Elegant integrated endcap and silicone glued endcap are both
available with front/side/bottom cable entry directions
Quick Detail:
· Size 6mm x 12mm / 0.24" x 0.47" (W x H)
· UV-resistance(no yellowish)
· Lumileds LED
· 120º beam projection
· Maximum run length 13M@10W/m
· IP67 rating
· Cable entry directions: Front, side, bottom cable entry
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Specifications:
| Tech Date | |
| Model | ASTON 0612 WHT-27 |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP44/IP67 |
| Warranty | 5 Years |
| Max. Run Length | 13M |
| CRI | Ra94 |
| LED Color | 2700K/3000K/3500K/4000K/5500K |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
Power(W/m W/ft) | 10/3.1 |
| Power(W/M) | 10W/m |
| Lumen | 400lm/m@10W/m (2700K) |
Download Datasheet: LEDLINE
ASTON 0612 WHT.pdf
Notices:
-Max. run length refers to single side feed in serial connection.
-The given data are typical values due to the tolerances of the
production process and the electrical
components, values for light output and electrical power can vary
up to 10%.
-The given color temperature is the temperature of finished
product.
Applications:
Facade lighting, contour lighting and landscape lighting.
Solutions for retail shop.
Signage and illuminated advertising.
Ideal for architectural lighting, coves, object integration.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1:What is silicone neon and how is it made?
A: Silicone neon is a type of neon-like lighting made from flexible
silicone material instead of traditional glass tubing. The silicone
tubes are filled with a mixture of inert gases, such as neon,
argon, and helium, and a small amount of phosphors to create a
vibrant glow. The tubes are then sealed and shaped into various
designs and letters using molds and heat.
Q2What are the advantages of silicone neon over traditional glass
neon?
A:Silicone neon has several advantages over traditional glass neon,
including:
Flexibility and durability: Silicone neon is much more flexible and
durable than traditional glass neon, making it ideal for use in a
variety of applications, including outdoor signage and
architectural lighting.
Safety: Silicone neon is safer than glass neon because it does not
shatter or break easily, reducing the risk of injury.
Energy efficiency: Silicone neon is more energy-efficient than
traditional glass neon because it uses less power to produce the
same level of brightness.
Cost-effective: Silicone neon is generally less expensive than
traditional glass neon, making it a more affordable option for
businesses and individuals.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive.
Airline and sea shipping also optional.
