2700K-5500K IP44/IP67 Silicone LED Neon Strip Lights DC24V DIY
Connectors
Quick Detail:
· Size 6mm x 12mm / 0.24" x 0.47" (W x H)
· UV-resistance(no yellowish)
· Lumileds LED
· 120º beam projection
· Maximum run length 13M@10W/m
· Cable entry directions: Front, side, bottom cable entry
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Specifications:
| Tech Date | |
| Model | ASTON 0612 WHT |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| LED PIN Temperature | Max.65℃/149℉ |
| Warranty | 5 Years |
| Max. Run Length | 13M |
| CRI | Ra90 |
| LED Color | White |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Power(W/M) | 10W/m |
Dowload datasheet: LEDLINE
ASTON 0612 WHT.pdf
Notices:
1. Please light it up for a quick check before installation.

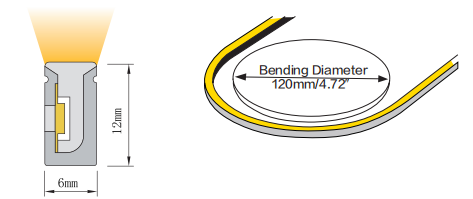

2. Bending diameter of LEDLINE ASTON 0612 WHT is 120mm, do not bend
to top direction, or bend too sharp or twist. If bend it wrongly,
PCB inside will be damaged and the lighting fixture will not turn
on.
3. During installation, please make sure there are at least two
workers to cooperate together and strictly follow the instruction
manuals.
4. Warranty: All LED light are warranted to be free from defects in
product itself for 5 years from the date of purchase. This warranty
does not cover failures due to abuse, misuse, improper handling,
act of nature, negligence, normal wear, accidental damage,
modifications or repairs made by the purchaser or incorrect voltage
conditions.
5. The given color temperature is the temperature of finished
product.
Applications:
1. Top bending, better lighting performance& higher brightness,
suitable for commercial lighting, general lighting, detail lighting
required exquisite
designs.
2. Ideal for architectural lighting, coves, object integration.
