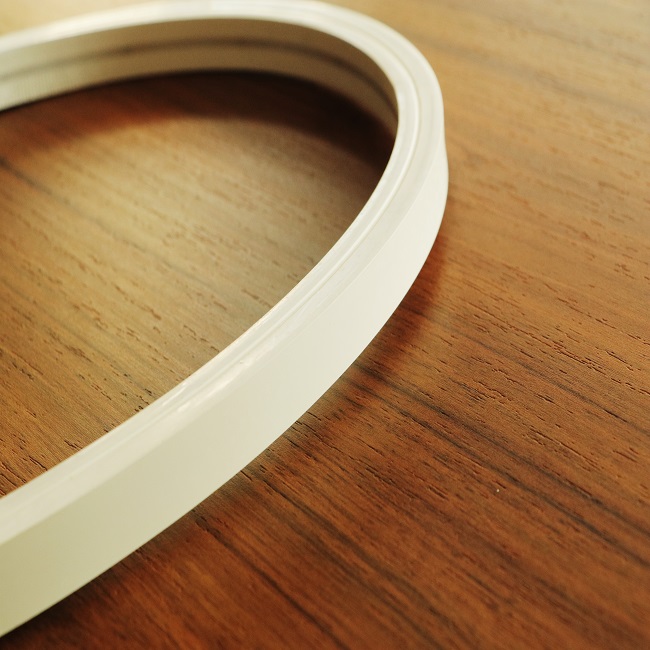

Flexible 160pcs LED Neon Strip SMD2835 2700K Warm White Color
ERP 24VDC Flexible Silicone LED Strip 160LEDs 2700K Warm White IP67
16mm X 15mm
Quick Detail:
· ERP Qualified silicone neon
· ERP classification: F
· Size 16x15mm(WxH) / 0.63" x 0.59"(WxH)
· UV-resistance(no yellowish)
· CRI>80
· Cable entry directions: Front/Side/Bottom cable entry
· Endcap options: Integrated Endcap/DIY Endcap/Glued Endcap
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Specifications:
| Model | ERP LEDLINE ASTON 1615 HE-27 |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 5 Years |
| Max. Run Length | 5M |
| CRI | Ra80 |
| LED Color | Warm white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Working Energy Consumption(kWh/1000h) 0.5m | 4.8 |
| Lumen Maintenance Factor | 0.96 |
| Color Temperature | 3000K |
| Chromaticity Coordinates (x and y) | x=0.463 / y=0.42 |
| Power(W/M) | 9.6W/M |
| Power(W/0.5M) | 4.8W/M |
| LM/0.5M | 530lm |
| Efficiency(LM/W) | 110lm/w |
| ERP classification | F |
Download datasheet: ERP LEDLINE ASTON 1615 HE.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of ERP LEDLINE ASTON 1615 WHT is 240mm, do not
bend to side direction, or bend too sharp or twist. If bend it
wrongly, PCB inside will be damaged and the lighting fixture will
not turn on.
3. During installation, please make sure there are at least two
workers to cooperate together and strictly follow the instruction
manuals.
4. Warranty: All LED light are warranted to be free from defects in
product itself for 5 years from the date of purchase. This warranty
does not cover failures due to abuse, misuse, improper handling,
act of nature, negligence, normal wear, accidental damage,
modifications or repairs made by the purchaser or incorrect voltage
conditions.
Applications:
ERP LEDLINE ASTON 1615 HE-30 is suitable for both indoor and
outdoor applications such as facade lighting, contour lighting,
landscape lighting, retail shops, gallery, show-booth and
exhibition room. Ideal for architectural lighting, coves, object
integration.Desired light effect in bar counter, restaurant, hotel
and task lighting applications.
FAQ:
Commercial CE RoHS Reach UL Certificate Outdoor IP67 Waterproof
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
