3D IP67 DC24V protected UV resistant Silicone Flexible Neon Strip
CRI90
Description:

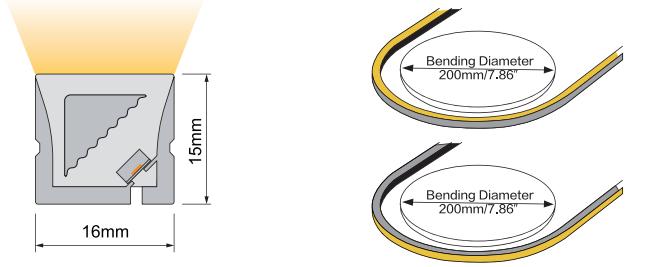

- LEDLINE EVIS WHT, DC24V.Cross section size 16mm x 15mm/ 0.63" x
0.59" (W x H), Vertical
bending & Horizontal bending both are available with radius of
100mm / 3.93".
- IP67 protected, UV resistant, chemical resistant and DIY
connectors for indoor & outdoor solutions. Very easy to cut &
reconnect on site.
- 2-Step MacAdam bin and dot free lighting guarantee the most
excellent performance over the rated lifetime.
Specifications:
| Model | LEDLINE EVIS WHT |
| SMD Type | Lumileds 2835/Sanan 2835 |
| LEDs/m | 120LEDs/m |
| LED Power | 10W/M |
| LED Color | 2700K/3000K/3500K/4000K/5000K |
| Input Voltage | DC24V |
| Ra | >93 |
| Neon Dimension | 16mm*15mm |
| Unit cut | 50mm |
| IP Grade | IP67 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
Package length | ≤ 30m |
Beam Angle | 120° |
| Bending | 3D Bending (Vertical bending & Horizontal) |
Download Datasheet: EVIS.pdf
Notices:
- The product is not available for cutting.
- When ambient temperature reaches 55℃ , the power is suggested to
be 5W/M.
- Max. run length refers to single side feed in serial connection.
- The given data are typical values due to the tolerances of the
production process and the electrical components, values for light
output and electrical power can vary up to 10%.
- The given color temperature is the temperature of finished
product.
Applications:
Court lighting, signature lighting, Urban lighting.
Hotel, showing room, corridors, apartment, plaza, shopping mall.
Landscape lighting, garden lighting, luminaries solutions can be
all in.
